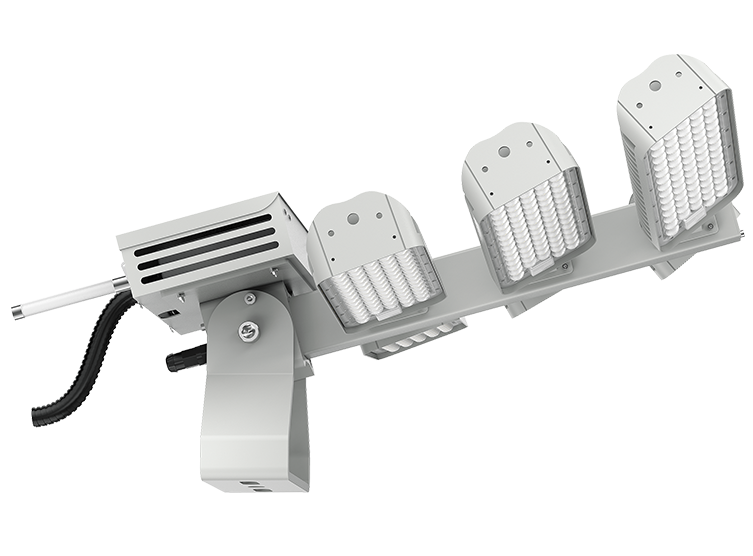

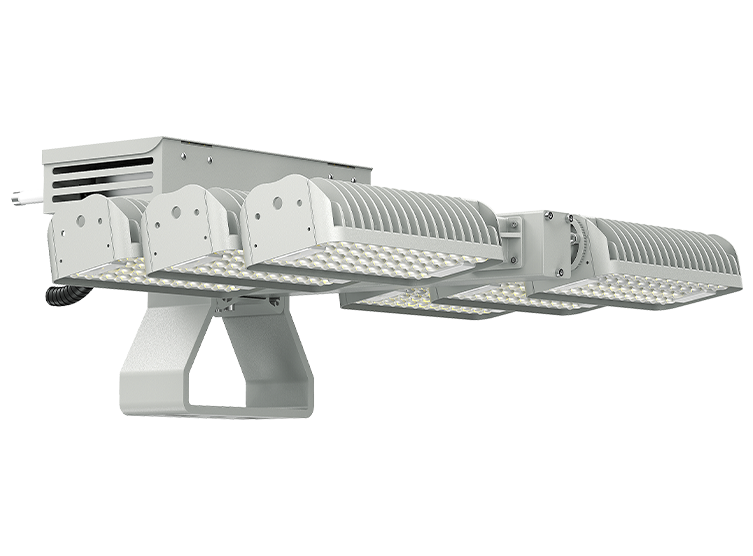

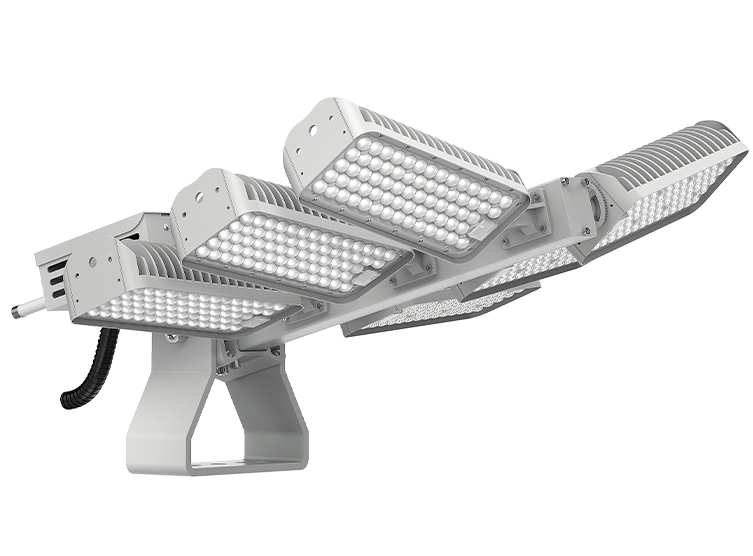

EAGLE 900W/1080W

patent design under the inspiration of Eagle, Like the eagle\'s eyes, it accurately confirms the target, free and flexible, and precisely illuminated.and also with other competitive features as below:



  • Patent Streamlined Design

  • High-quality Die-casting aluminium housing

  • Vertically and Horizontally Adjustable Modular Design

  • Smaller Size and Lighter Weight

  • Anti-Glare & Obtrusive Light Control

  • Easy Aiming Check One-size Screws for all adjustment

  • Tool-free driver box

  • Quick Connected Electrical Box

  • Wireless Smart Control

  • Wireless or DMX Entertainment System


SEND INQUIRY
Features
Parameters
Download
  • Input Voltage: AC90-305V/AC108-528V
  • LED Brand: Lumileds 5050
  • Housing: Aluminum
  • CRI: 70 80 90
  • Bracket: Aluminum
  • Operating Temp: -40℃ to 55℃
  • Driver: Meanwell, Sosen, Inventronics
  • Power Factor: >0.95
  • Dimming Solutions: 0-10v Dimming, DALI, CLO,Zigbee
  • Warranty : 5 yrs warranty
  • CCT: 3000K 4000K 5000K 5700K 6500K
  • IP Rate: IP66
  • Wireless Control: Available
  • Driver Box: Detachable
  • Beam Angle: 20°,40°, 60°,Asymmetric 60°,Asymmetric 60W
  • IK Rate: IK08

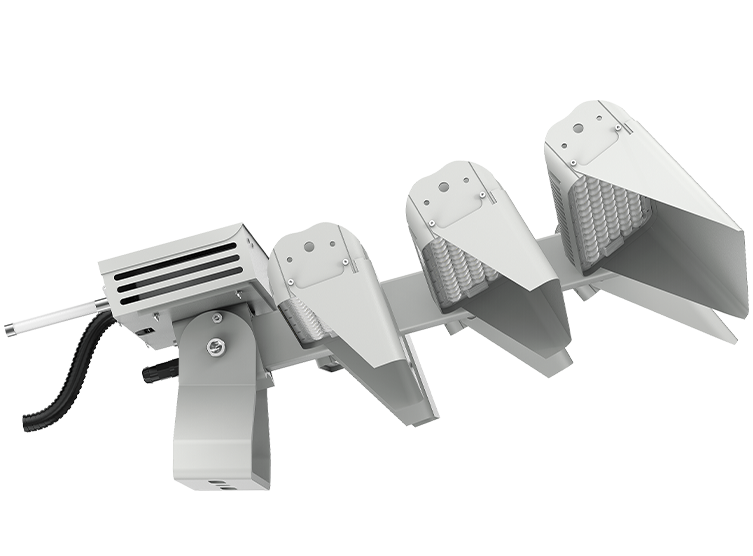

  • Optional Accessories:Spill Cover, Angle Rubler Sight, SPD, Seperated Driver Box, Zigbee Gateway, Zigbee Controller, Zigbee Wall Switch
  • L70 Hour: >60,000 H
  • Wattage/module: Symmetrical:180W;Asymmetrical:150W
  • Wind Load: Can stand 17 Class Wind load (56.1~61.2 m/s)
Model SG-EG-600W SG-EG-720W SG-EG-900W SG-EG-1080W SG-EG-1200W SG-EG-1440W SG-EG-1500W SG-EG-1800W
WATTAGE 600W 720W 900W 1080W 1200W 1440W 1500W 1800W
MODEL QTY 4 4 6 6 8 8 10 10
LUMEN EFFICIENCY 145LM/W 170LM/W 145LM/W 170LM/W 145LM/W 170LM/W 145LM/W 170LM/W
LUMNE OUTPUT 87000LM 122400LM 130500LM 183600LM 174000LM 244800LM 217500LM 306000LM
