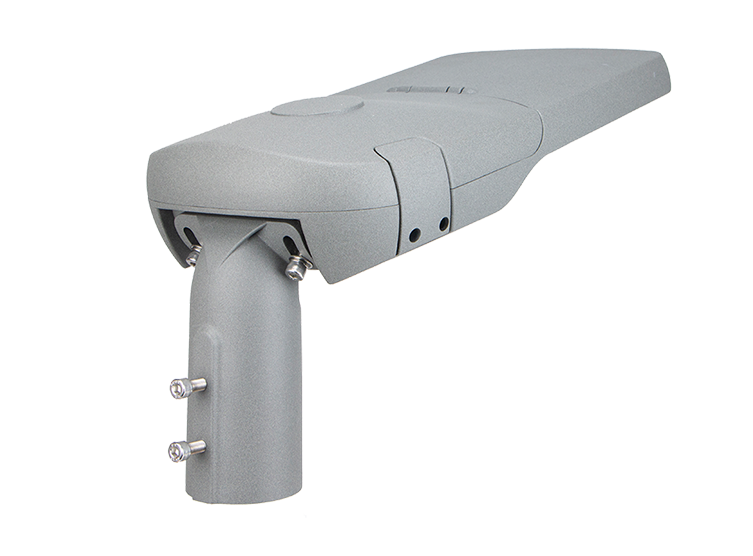

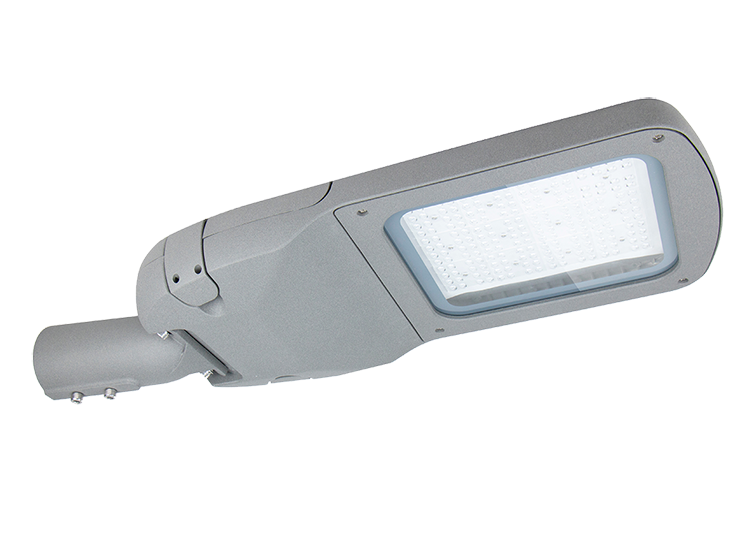

DELPHINUS SERIES 150W

DELPHINUS Series is the best alternative for traditional street and area lighting with quick payback, improved performance and preventing light pollution. This fixture is easy in installation, from 50 wattage to 200 wattage and also with other competitive features as below:


  • Powder-coated aluminum housing

  • Tool free access to LED driver

  • Protection switch connector

  • IP65 (EN60529 compliant) rated water-proof

  • Optional photocell daylight sensor

  • Smart Wireless control

  • Free Dialux Simulations




SEND INQUIRY
Features
Parameters
Download
  • Input Voltage: AC90-305V/AC108-528V
  • LED Brand: Lumileds 3030
  • CRI: 70 80 90
  • Operating Temp: -40℃ to 55℃
  • Driver: Meanwell, Sosen, Inventronics
  • Power Factor: >0.95
  • Beam Angle: 155°*80°
  • Sensor: Motion Sensor;dayight Sensor
  • Warranty : 5 yrs warranty
  • Dimming Solutions: 0-10v Dimming, DALI
  • IP Rate: IP65
  • Housing: Aluminum
  • Surge Protection: 10KV
  • L90 Hour: >50,000 H
  • CCT:3000K 4000K 5000K 5700K 6500K
  • 尺寸图(PRO).png
Model SG-PST-50W SG-PST-100W SG-PST-150W
Power 50W 100W 150W
Lumen output 6500lm 13000lm 19500lm
