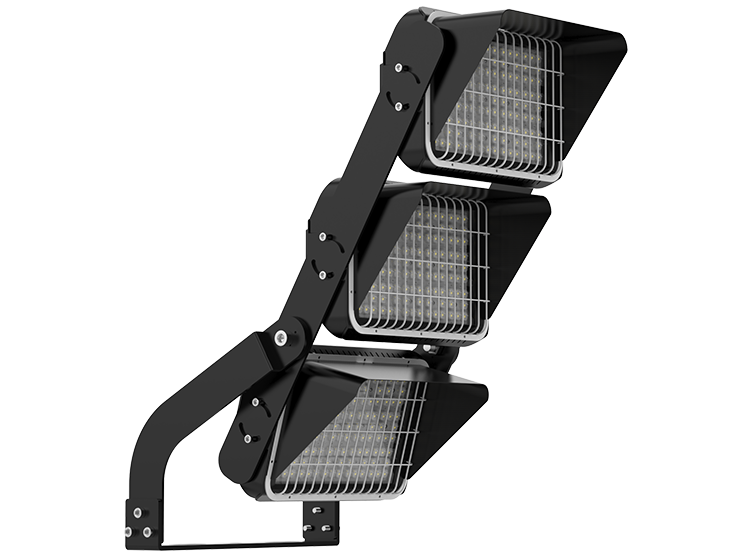

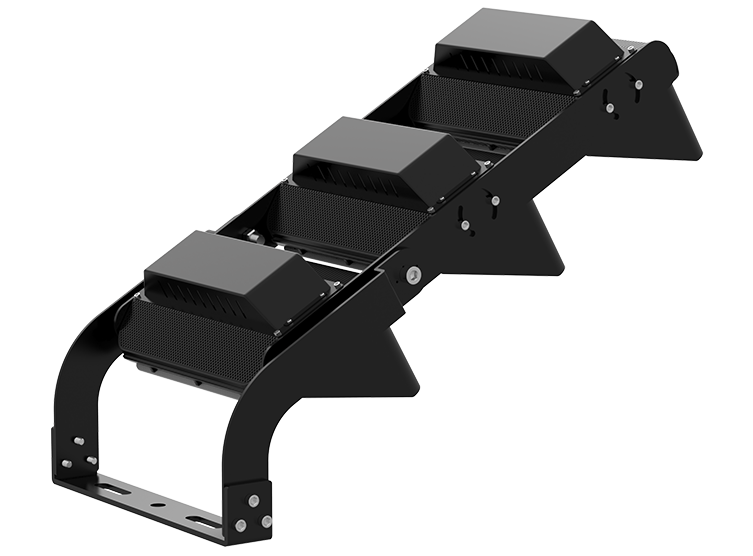

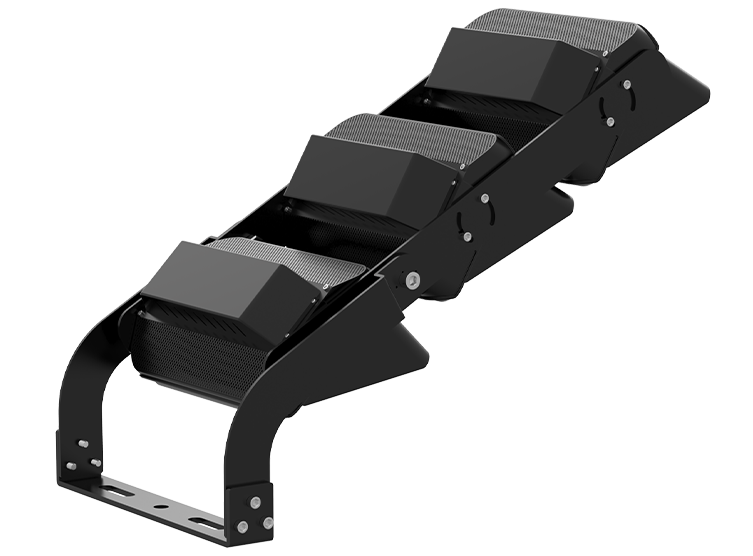

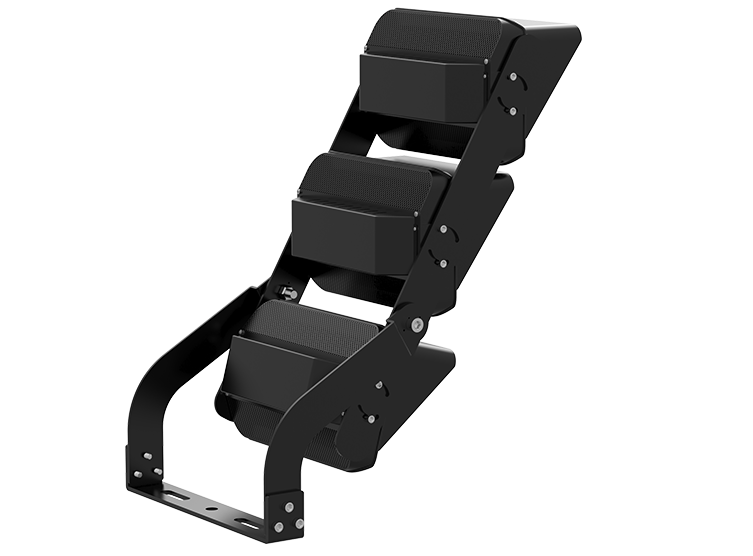

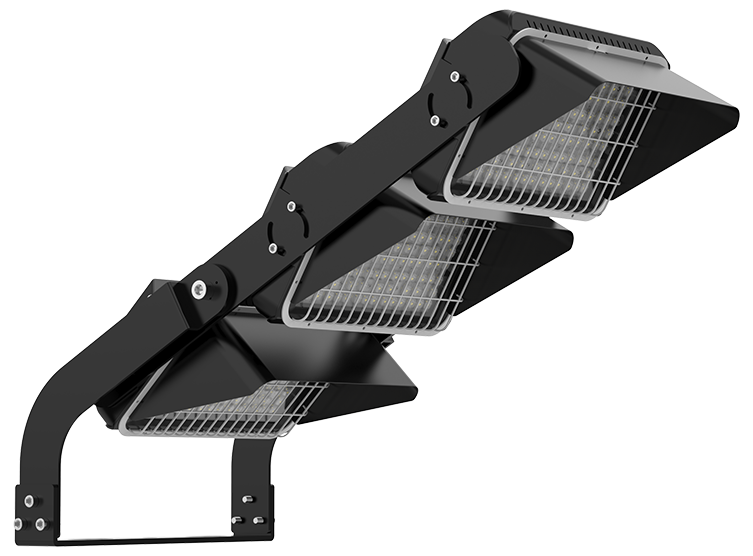

BARRETT H SERIES 750W

Compare with Barrett E and Y series, H series are with even wider range of applications. Except the sports lighting application, it is also the perfect option for Construction site, Airport, Seaport, Public Square etc.



  • From 500W to 1800W

  • Precise target lighting with the rotatable modular design

  • Glare Control with light spill cover

  • Class 17 wind load resistance

  • Free Dialux Simulation

  • Broadcast standard TLCI>90

  • No exposed electric wire

  • Wireless Control

  • Detachable driver box

  • Quick connection plug



SEND INQUIRY
Features
Parameters
Download
  • Input Voltage: AC90-305V/AC108-528V
  • Lumen Efficiency: 120LM/W (with light Spill cover) to 150LM/W
  • LED Brand: Lumileds 5050
  • Housing: Aluminum
  • CRI: 70 80 90
  • Bracket: Stainless Steel
  • Operating Temp: -40℃ to 55℃
  • Driver: Meanwell, Sosen, Inventronics
  • Power Factor: >0.95
  • Dimming Solutions: 0-10v Dimming, DALI, CLO
  • Warranty : 5 yrs warranty
  • CCT: 3000K 4000K 5000K 5700K 6500K
  • IP Rate: IP66
  • Wireless Control: Available
  • Driver Box: Detachable
  • Beam Angle: 20°,40°, 60°,90°,Asymmetric 50°
  • IK Rate: IK08
  • Optional Accessories: Light Spill Cover; Protection Shield
  • L70 Hour: >60,000 H
  • Wattage/module: 250w or 300w
  • Wind Load: Can stand 17 Class Wind load (56.1~61.2 m/s)
  • 尺寸图(H).png
Model SG-BA-H600W SG-BA-H900W SG-BA-H1200W SG-BA-H1800W
Model Qty 2 3 4 5
Power 600W 900W 1200W 1800W
Lumen Output 90000LM 130500LM 174000LM 261000LM
