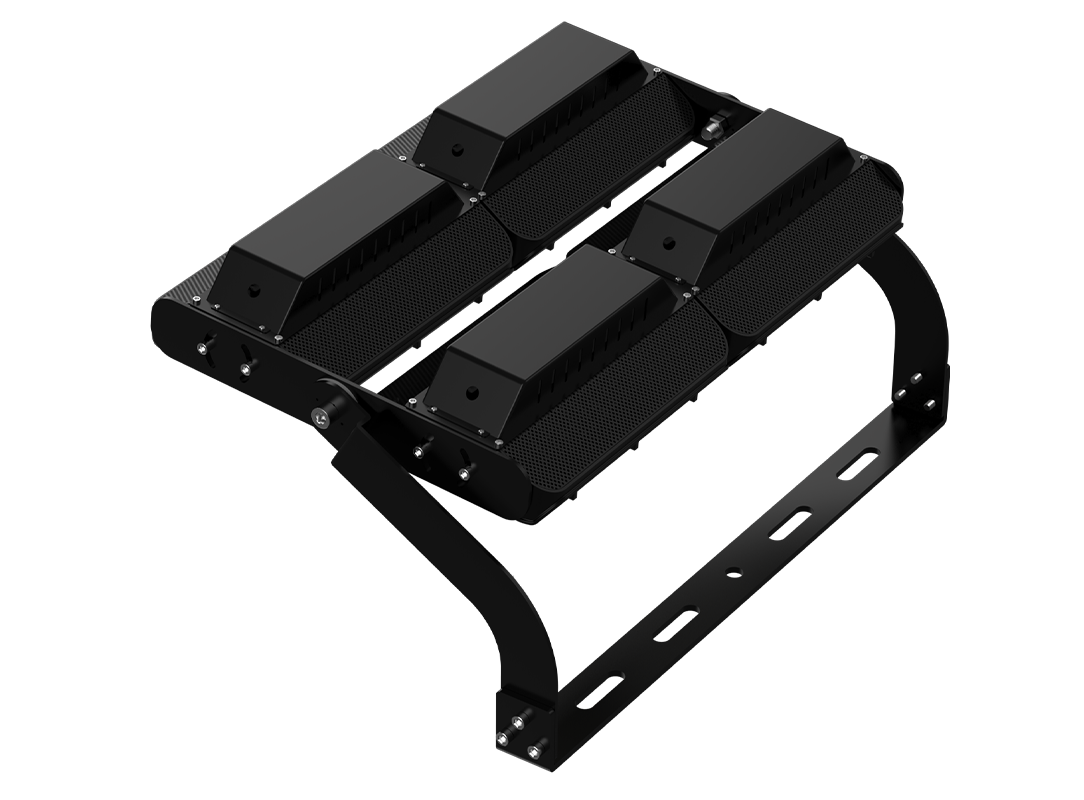

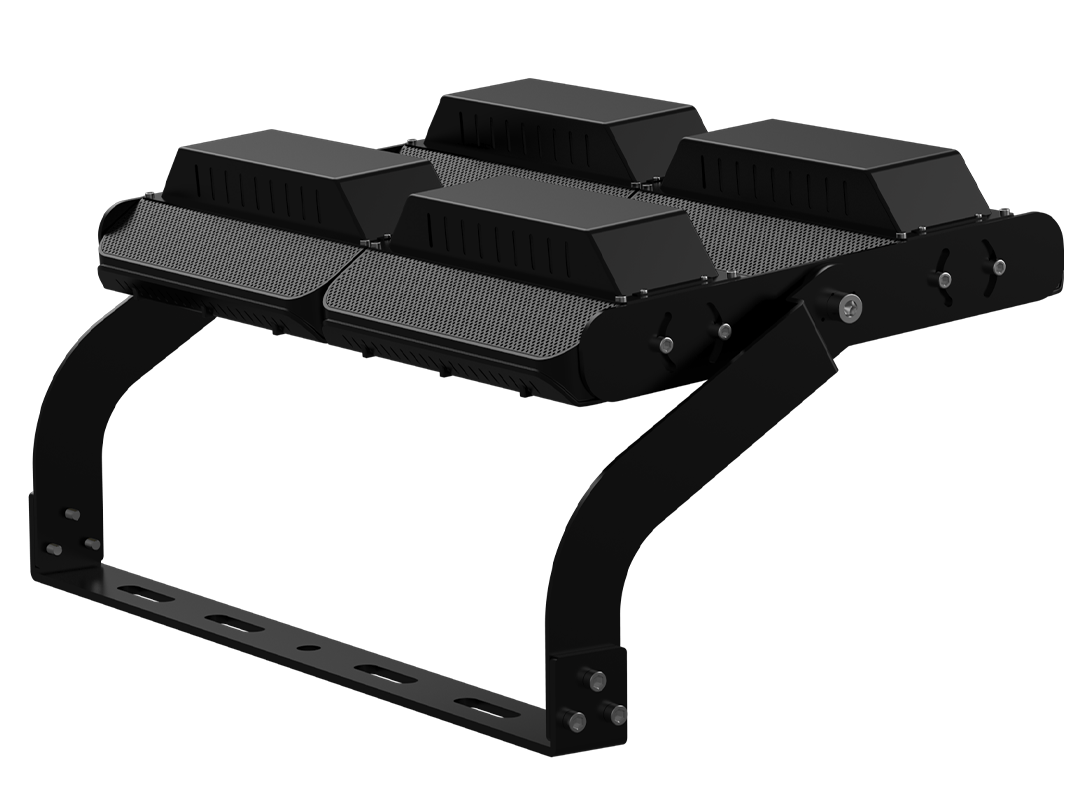

BARRETT H SERIES ASYMMETRIC 1000W

Barrett H V2.0 Asymmetric version, which is specially designed for those high-end market which have strict standards on obtrusive light control on sports lighting. With our real asymmetric design, this series can be installed horizontally with less than 10°elevation angle. Can pass the most strict AS/NZS 4282:2019 and EN12193: 2018. Your professional choice for your sports lighting projects in high residential area.



  • Perfect obtrusive light control

  • High lighting uniformity

  • Triple protection from bird harms and rugged weather

  • Smart wireless control system

  • RGBW amusement lighting function

  • Detachable driver box

  • 10KV surge protection


SEND INQUIRY
Features
Parameters
Download
  • Input Voltage: AC90-305V/AC108-528V
  • Lumen Efficiency: 130LM/W
  • LED Brand: Lumileds 5050
  • Housing: Aluminum
  • CRI: 70 80 90
  • Bracket: Stainless Steel
  • Operating Temp: -40℃ to 55℃
  • Driver: Meanwell, Sosen, Inventronics
  • Power Factor: >0.95
  • Dimming Solutions: 0-10v Dimming, DALI, CLO
  • Warranty : 5 yrs warranty
  • CCT: 3000K 4000K 5000K 5700K 6500K
  • IP Rate: IP66
  • Wireless Control: Available
  • Driver Box: Detachable
  • Beam Angle: 20°,40°, 60°,90°,Narrow Asymmetric and Wide Asymmetric
  • IK Rate: IK08
  • Optional Accessories: Light Spill Cover; Protection Shield
  • L70 Hour: >60,000 H
  • Wattage/module: 250w
  • Wind Load: Can stand 17 Class Wind load (56.1~61.2 m/s)
Model SG-BA-H500W-A SG-BA-H750W-A SG-BA-H1000W-A SG-BA-H1500W-A
Model Qty 2 3 4 6
Power 500W 750W 1000W 1500W
Lumen Output 65000LM 97500LM 130000LM 195000LM
